Beschrijving

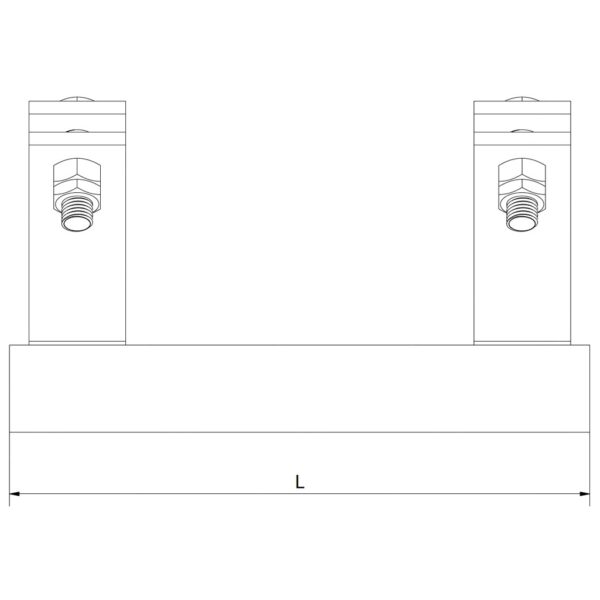

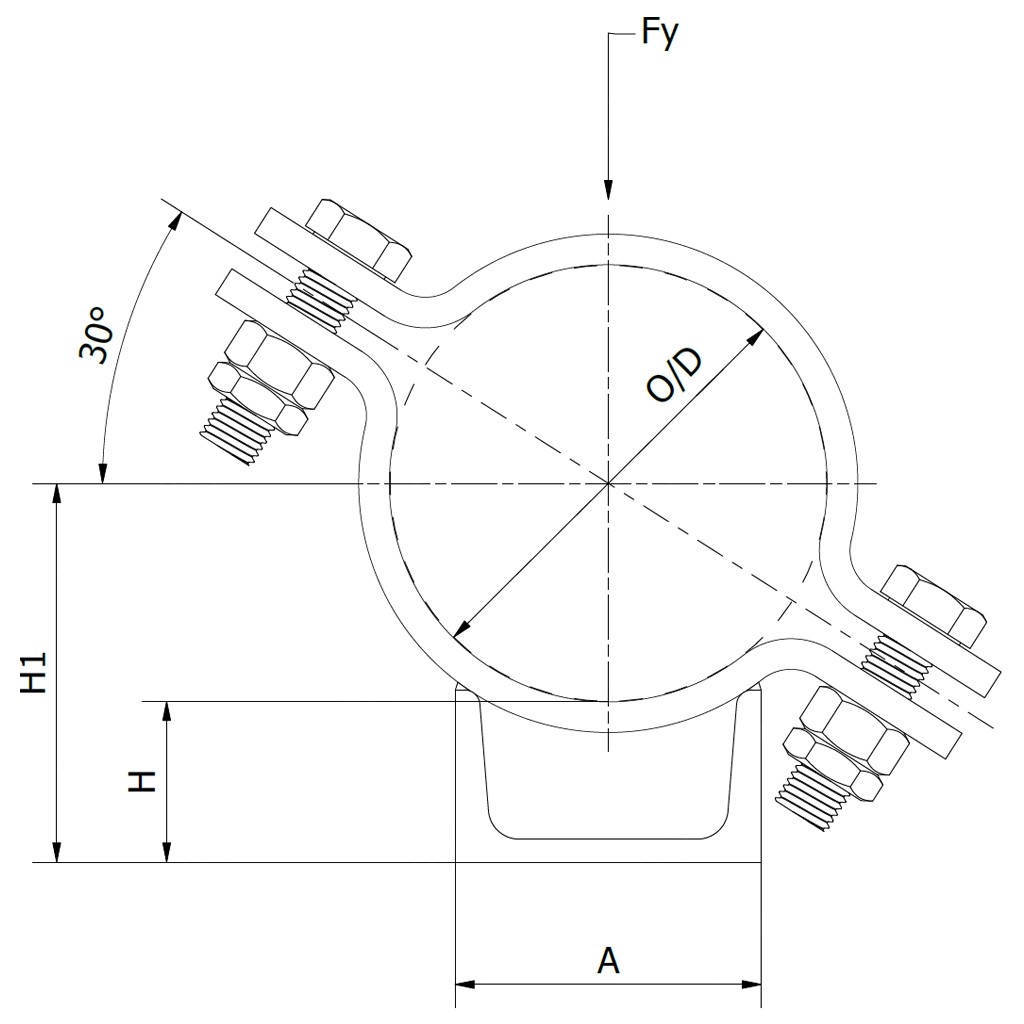

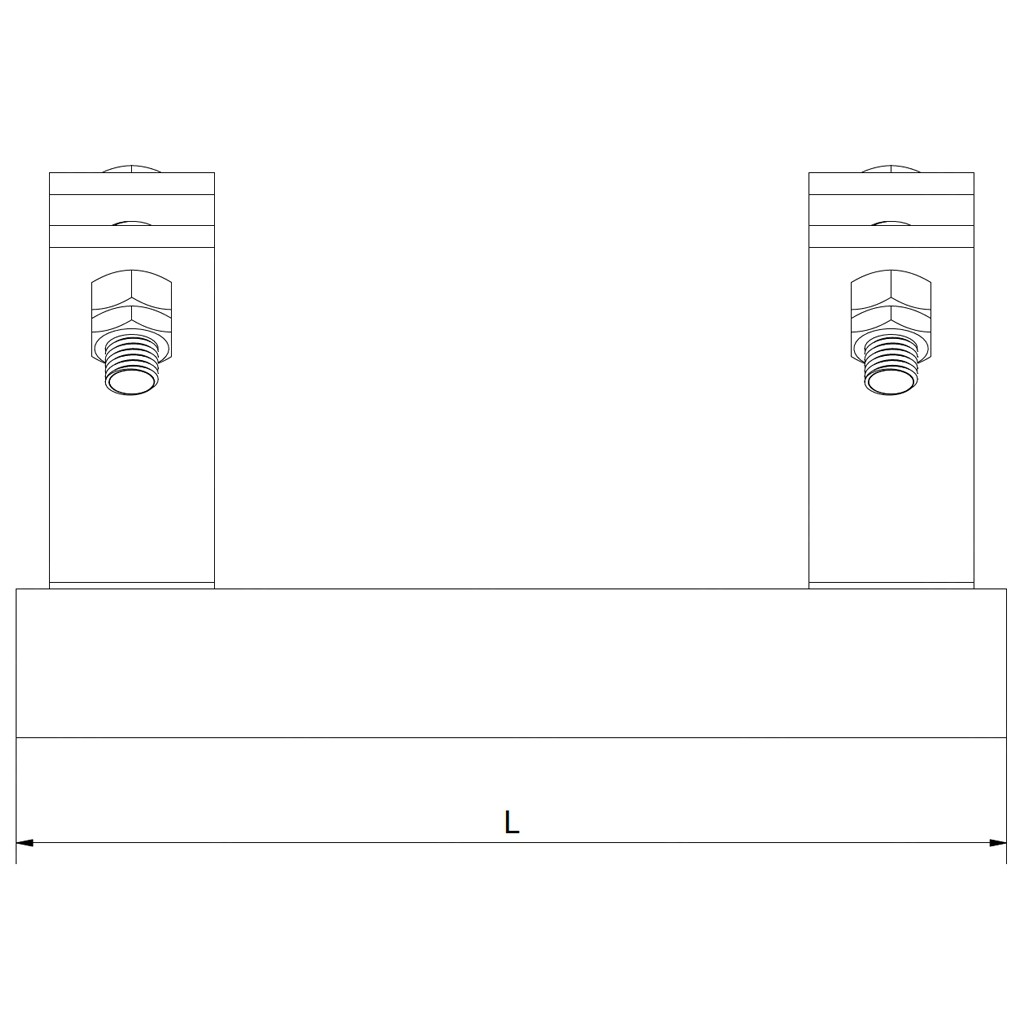

| Artikelnummer | O/D inch | O/D mm | A | H | H1 | L | Fy (kN) 80ºC | Gewicht (kg) |
|---|---|---|---|---|---|---|---|---|
| 66.811.ST0061.1 | 2 | 60,3 | 50 | 37 | 67 | 250 | 5,0 | 2,80 |
| 66.811.ST0077.1 | 2 1/2 | 76,1 | 50 | 39 | 77 | 250 | 5,0 | 3,10 |
| 66.811.ST0089.1 | 3 | 88,9 | 50 | 39 | 83 | 250 | 5,0 | 3,10 |
| 66.811.ST0115.1 | 4 | 114,3 | 80 | 42 | 99 | 300 | 5,4 | 6,40 |
| 66.811.ST0140.1 | 5 | 139,7 | 80 | 44 | 114 | 300 | 5,4 | 6,80 |
| 66.811.ST0169.1 | 6 | 168,3 | 80 | 46 | 130 | 300 | 5,4 | 7,30 |
| 66.811.ST0220.1 | 8 | 219,1 | 140 | 52 | 162 | 300 | 8,3 | 10,60 |
| 66.811.ST0273.1 | 10 | 273,0 | 140 | 52 | 188 | 300 | 10,8 | 13,50 |
| 66.811.ST0324.1 | 12 | 323,9 | 160 | 55 | 217 | 300 | 10,1 | 15,50 |
| 66.811.ST0356.1 | 14 | 355,6 | 160 | 57 | 235 | 300 | 10,1 | 16,70 |
| 66.811.ST0407.1 | 16 | 406,4 | 200 | 63 | 266 | 400 | 10,3 | 28,80 |
| 66.811.ST0458.1 | 18 | 457,2 | 200 | 65 | 294 | 400 | 10,3 | 30,10 |
| 66.811.ST0508.1 | 20 | 508,0 | 240 | 68 | 322 | 400 | 12,4 | 35,30 |
| 66.811.ST0610.1 | 24 | 609,6 | 240 | 70 | 375 | 400 | 12,4 | 38,80 |
