Name: Pijpbeugel Fig. 605A | geïsoleerd t.b.v. koper-nikkel leidingen | S235JR thermisch verzinkt
SKU: 605A3

Pijpbeugel Fig. 605A
geïsoleerd t.b.v. koper-nikkel leidingen
S235JR thermisch verzinkt

Materiaal S235JR volgens EN 10025-2
Uitvoering thermisch verzinkt
Bouten volgens DIN 931/933 klasse 8.8;
moeren volgens DIN 934/439B klasse 8 (thermisch verzinkt)
Lining uit silicone rubber elastomeer – tot 300°C

N.B. De uiteinden van de beugel kunnen half rond zijn

Beschrijving

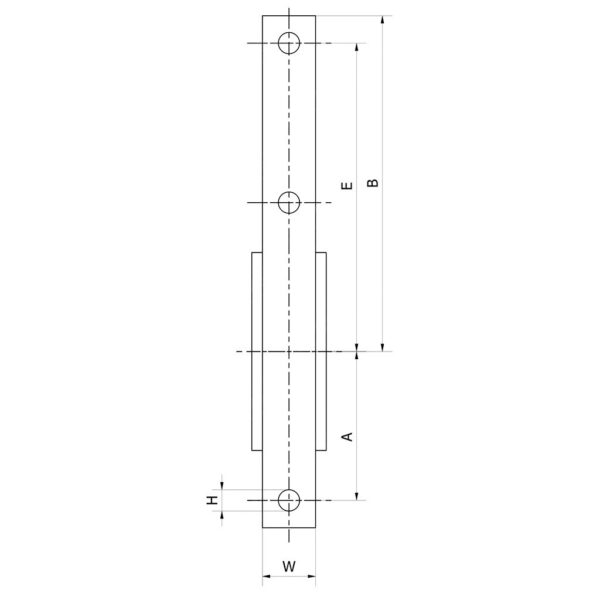

Artikelnummer	O/D mm	A	B	C	E	H	L	R	WxT	Bout afmeting	Fy (kN)	Gewicht (kg)
66.605.AST016.3	16,0	48	133	13	118	12	67	7	35x5	M10x45	2,7	0,72
66.605.AST020.3	20,0	48	133	13	118	12	85	7	35x5	M10x45	2,7	0,72
66.605.AST025.3	25,0	50	135	13	120	12	91	7	35x5	M10x45	2,7	0,74
66.605.AST030.3	30,0	53	138	13	123	12	109	7	35x5	M10x45	2,7	0,77
66.605.AST038.3	38,0	60	148	15	130	12	134	7	35x5	M12x50	2,7	0,91
66.605.AST045.3	44,5	60	163	15	145	14	151	7	35x5	M12x50	2,7	0,96
66.605.AST057.3	57,0	70	168	15	150	14	190	7	35x5	M12x50	2,7	1,03
66.605.AST077.3	76,1	78	201	15	183	14	245	7	35x5	M12x50	2,7	1,18
66.605.AST089.3	88,9	85	208	15	190	14	286	7	35x5	M12x50	2,7	1,25
66.605.AST108.3	108,0	95	218	15	200	14	355	7	35x5	M12x50	2,7	1,35
66.605.AST159.3	159,0	120	239	19	215	18	515	12	35x8	M16x70	4,4	2,62
66.605.AST220.3	219,1	163	287	19	263	18	695	12	35x8	M16x70	4,4	3,21
66.605.AST267.3	267,0	188	317	19	293	18	855	15	50x10	M16x70	4,4	3,41
66.605.AST324.3	323,9	225	350	23	320	22	1030	23	60x15	M20x90	8,8	6,10

Extra informatie

Artikelnummer	66.605.AST016.3, 66.605.AST220.3, 66.605.AST020.3, 66.605.AST267.3, 66.605.AST025.3, 66.605.AST324.3, 66.605.AST030.3, 66.605.AST038.3, 66.605.AST045.3, 66.605.AST057.3, 66.605.AST077.3, 66.605.AST089.3, 66.605.AST108.3, 66.605.AST159.3
