Name: Pijpbeugel Fig. 605 | geïsoleerd t.b.v. RVS leidingen | S235JR thermisch verzinkt
SKU: 6053

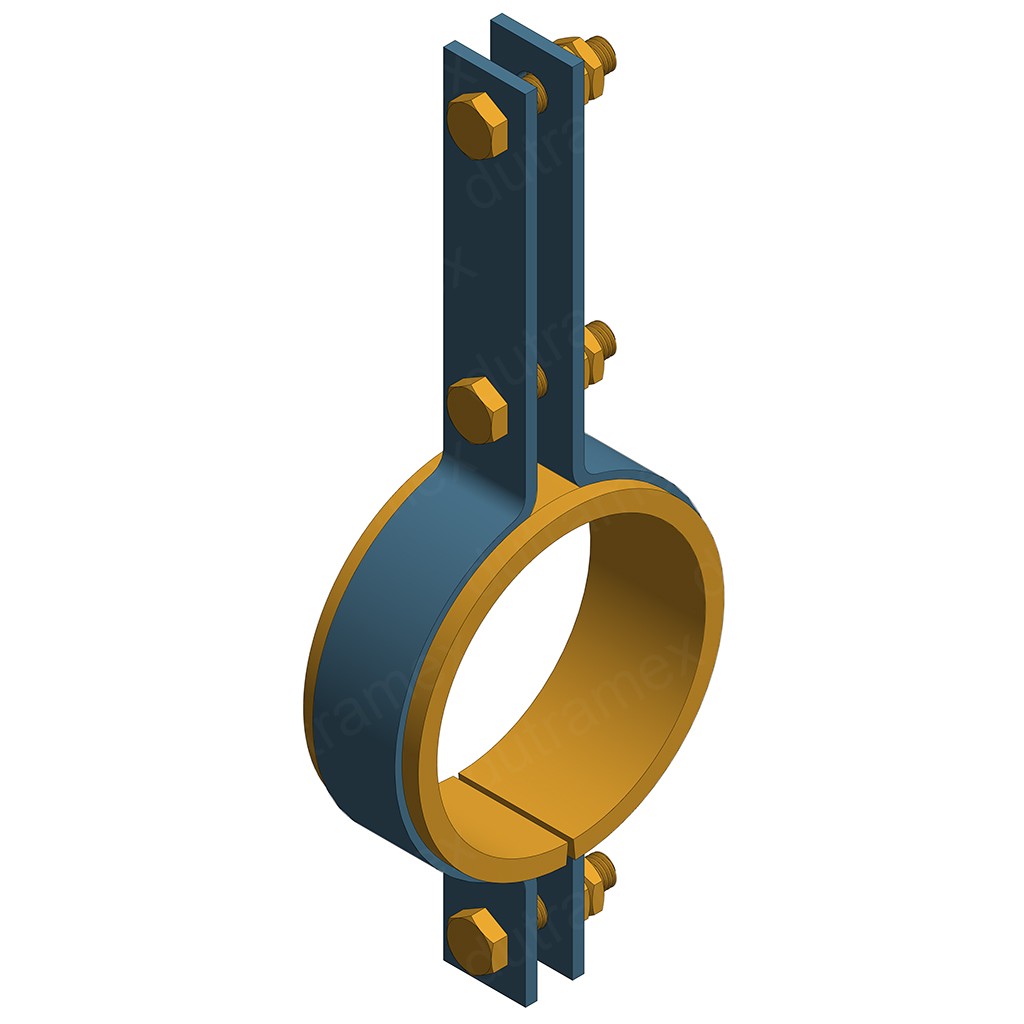

Pijpbeugel Fig. 605
geïsoleerd t.b.v. RVS leidingen
S235JR thermisch verzinkt

Materiaal S235JR volgens EN 10025-2
Uitvoering thermisch verzinkt
Bouten volgens DIN 931/933 klasse 8.8;
moeren volgens DIN 934/439B klasse 8 (thermisch verzinkt)
Lining uit silicone rubber elastomeer – tot 300°C

N.B. De uiteinden van de beugel kunnen half rond zijn

Beschrijving

Artikelnummer	O/D inch	O/D mm	A	B	C	E	H	L	R	WxT	Bout afmeting	Fy (kN)	Gewicht (kg)
66.605.ST0022.3	1/2	21,3	50	135	13	120	12	85	7	35x5	M10x45	2,7	0,74
66.605.ST0027.3	3/4	26,9	53	138	13	123	12	91	7	35x5	M10x45	2,7	0,76
66.605.ST0034.3	1	33,7	55	140	13	125	12	112	7	35x5	M10x45	2,7	0,79
66.605.ST0043.3	1 1/4	42,4	60	148	15	130	14	139	7	35x5	M12x50	2,7	0,92
66.605.ST0049.3	1 1/2	48,3	63	166	15	148	14	158	7	35x5	M12x50	2,7	0,98
66.605.ST0061.3	2	60,3	70	168	15	150	14	196	7	35x5	M12x50	2,7	1,04
66.605.ST0077.3	2 1/2	76,1	78	201	15	183	14	245	7	35x5	M12x50	2,7	1,18
66.605.ST0089.3	3	88,9	85	208	15	190	14	286	7	35x5	M12x50	2,7	1,25
66.605.ST0115.3	4	114,3	98	221	15	203	14	365	7	35x5	M12x50	2,7	1,38
66.605.ST0169.3	6	168,3	128	247	19	223	18	535	12	35x8	M16x70	4,4	2,71
66.605.ST0220.3	8	219,1	163	287	19	263	18	695	12	35x8	M16x70	4,4	3,21
66.605.ST0273.3	10	273,0	190	319	19	295	18	875	15	50x10	M16x70	4,4	3,63
66.605.ST0324.3	12	323,9	225	370	23	340	22	1030	23	60x15	M20x90	8,8	6,34

Extra informatie

Artikelnummer	66.605.ST0022.3, 66.605.ST0273.3, 66.605.ST0027.3, 66.605.ST0324.3, 66.605.ST0034.3, 66.605.ST0043.3, 66.605.ST0049.3, 66.605.ST0061.3, 66.605.ST0077.3, 66.605.ST0089.3, 66.605.ST0115.3, 66.605.ST0169.3, 66.605.ST0220.3
