Beschrijving

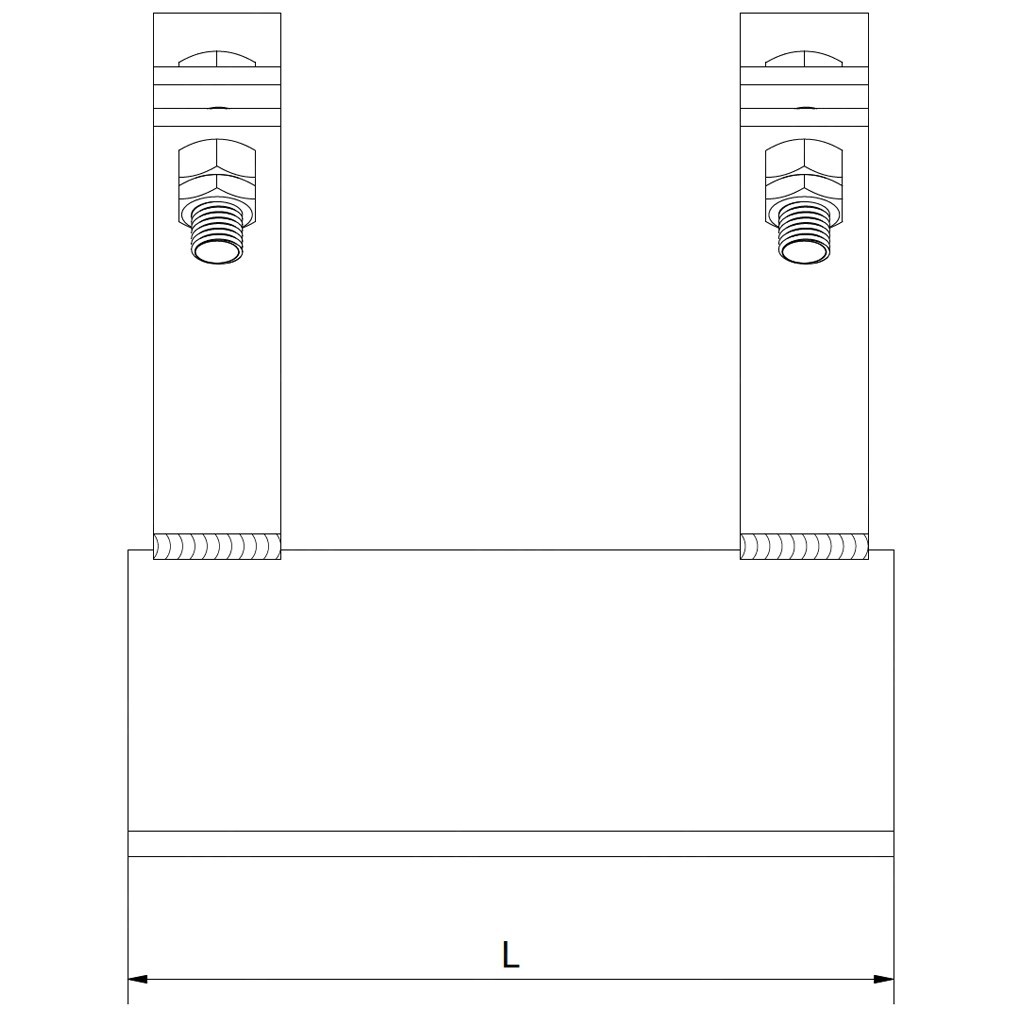

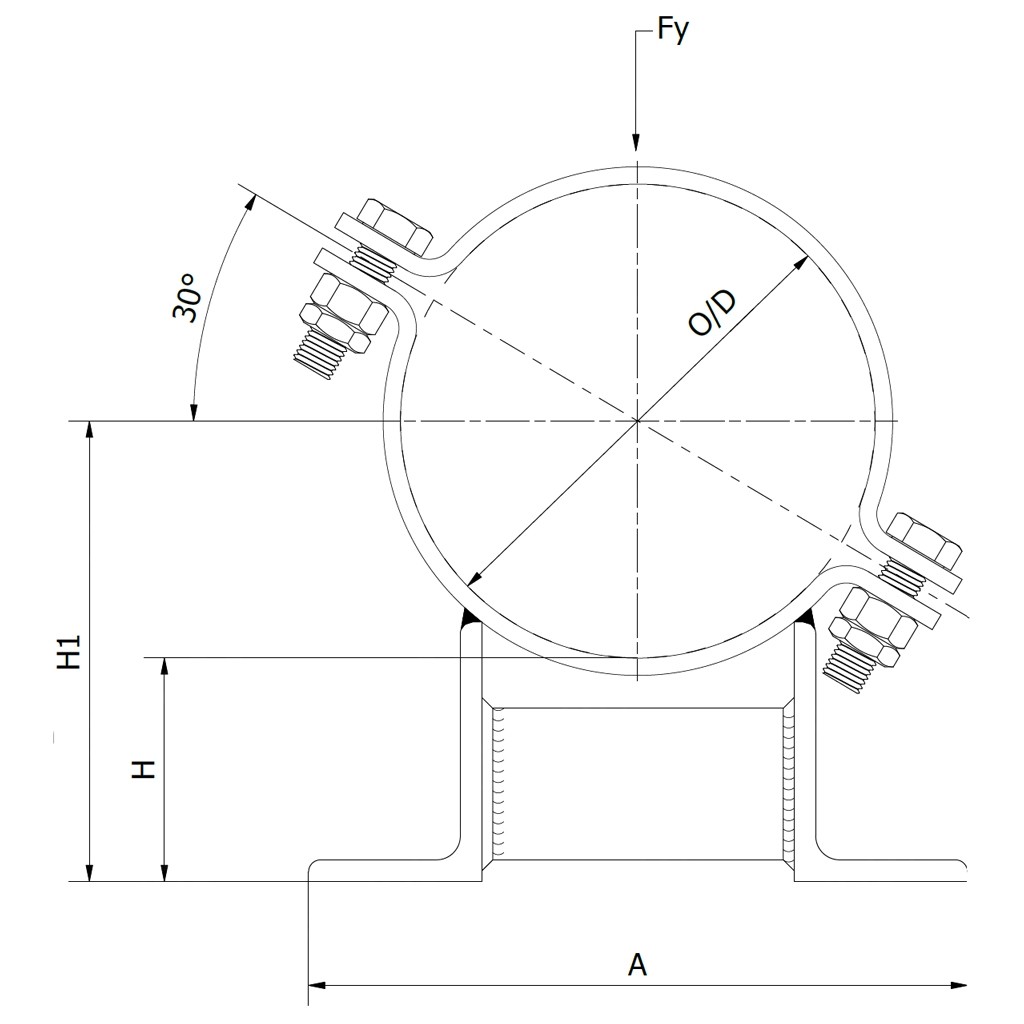

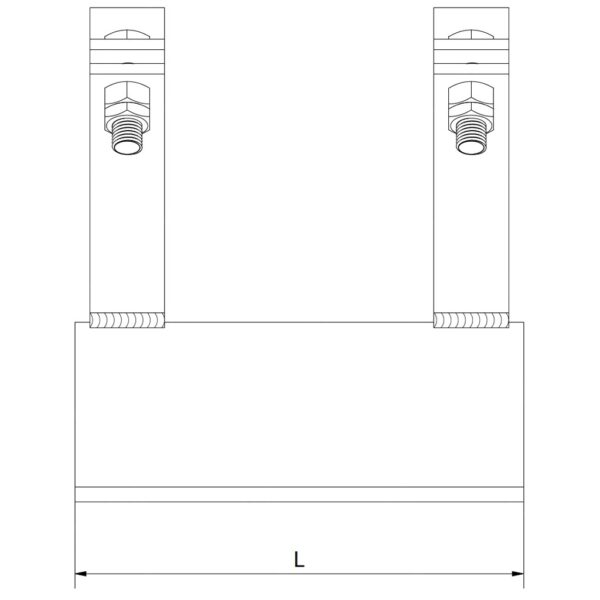

| Artikelnummer | O/D inch | O/D mm | A | H | H1 | L | Fy (kN) 80ºC | Gewicht (kg) |
|---|---|---|---|---|---|---|---|---|
| 66.815.ST0220.1 | 8 | 219,1 | 304 | 100 | 210 | 300 | 9,2 | 15,00 |
| 66.815.ST0273.1 | 10 | 273,0 | 325 | 100 | 237 | 300 | 11,0 | 18,00 |
| 66.815.ST0324.1 | 12 | 323,9 | 344 | 100 | 262 | 300 | 15,5 | 19,40 |
| 66.815.ST0356.1 | 14 | 355,6 | 355 | 100 | 278 | 300 | 15,5 | 20,70 |
| 66.815.ST0407.1 | 16 | 406,4 | 379 | 100 | 304 | 300 | 30,6 | 29,00 |
| 66.815.ST0458.1 | 18 | 457,2 | 395 | 100 | 329 | 300 | 30,6 | 30,00 |
| 66.815.ST0508.1 | 20 | 508,0 | 535 | 100 | 354 | 400 | 32,9 | 41,00 |
| 66.815.ST0610.1 | 24 | 609,6 | 570 | 100 | 405 | 400 | 45,9 | 44,80 |
| 66.815.ST0712.1 | 28 | 711,2 | 601 | 100 | 456 | 500 | 45,9 | 54,00 |
| 66.815.ST0813.1 | 32 | 812,8 | 764 | 100 | 506 | 500 | 46,9 | 67,00 |
