Beschrijving

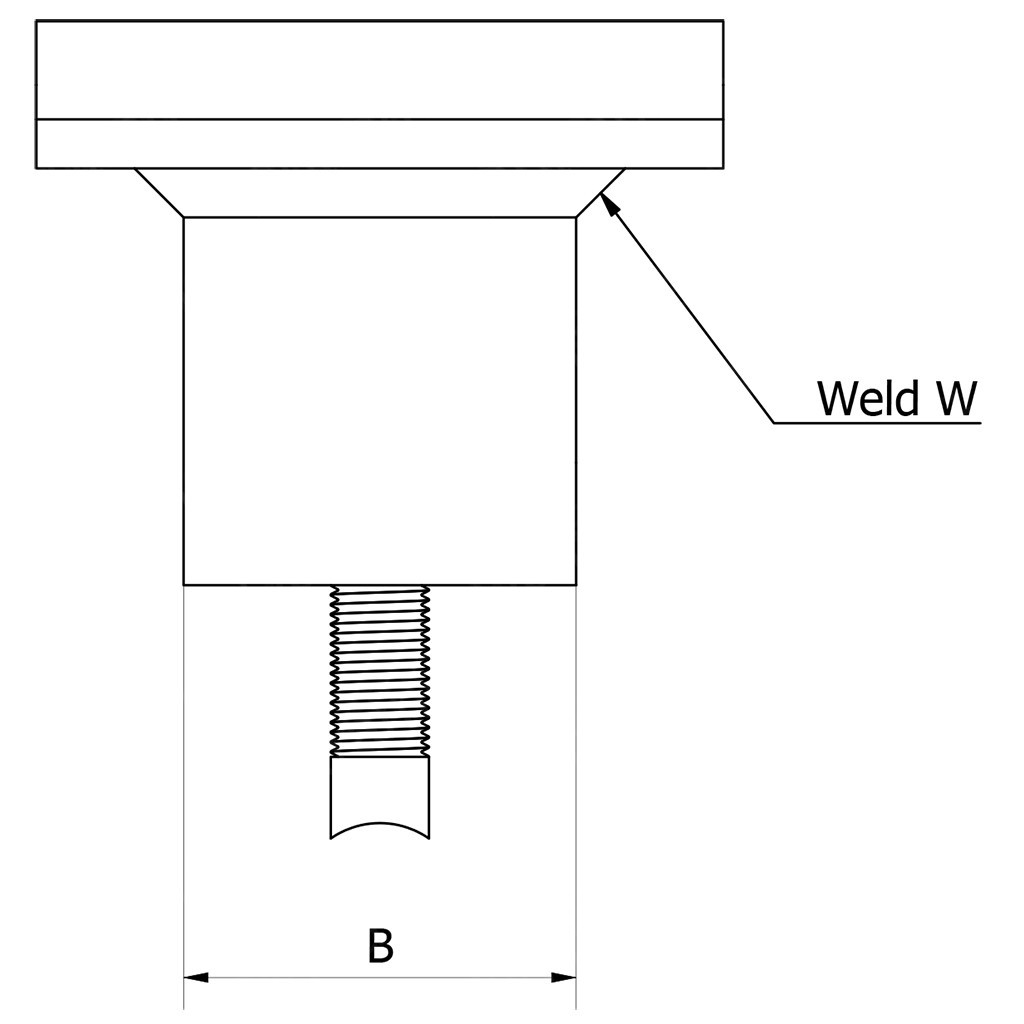

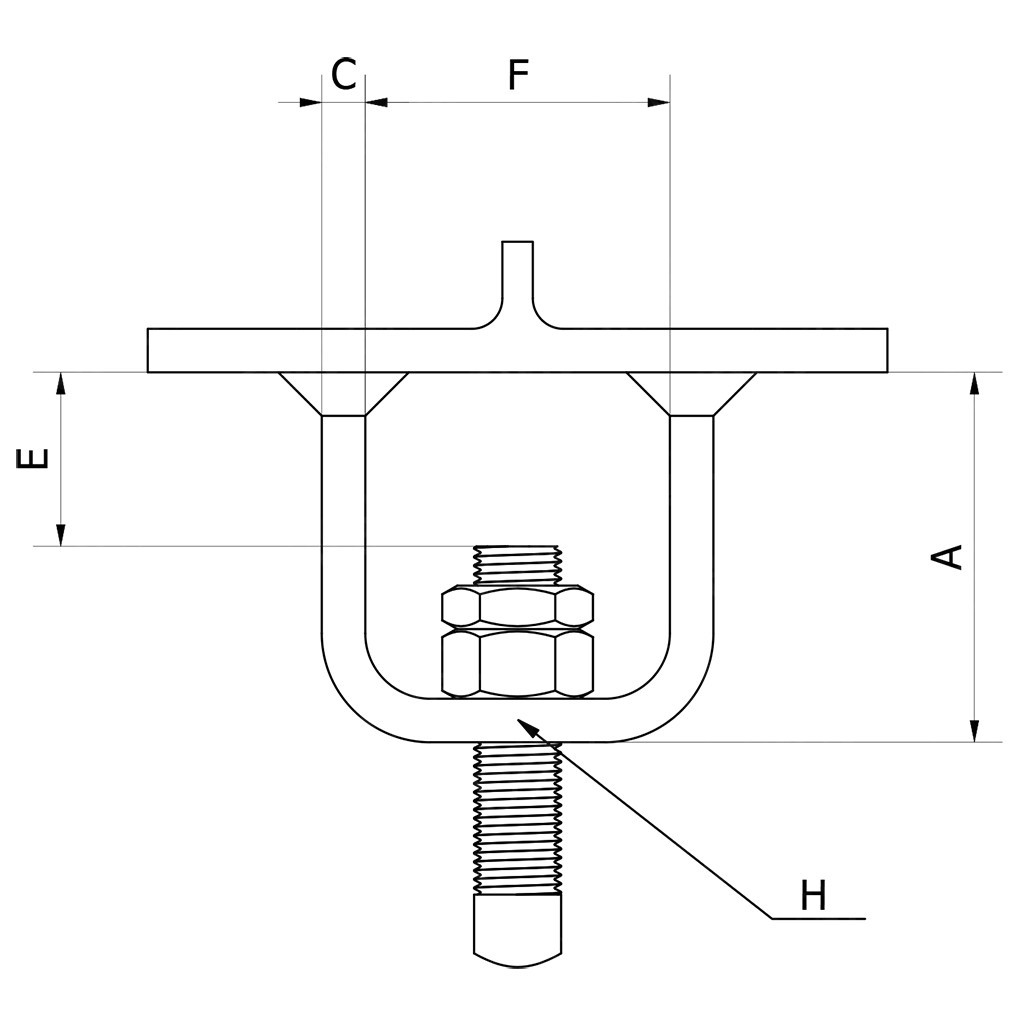

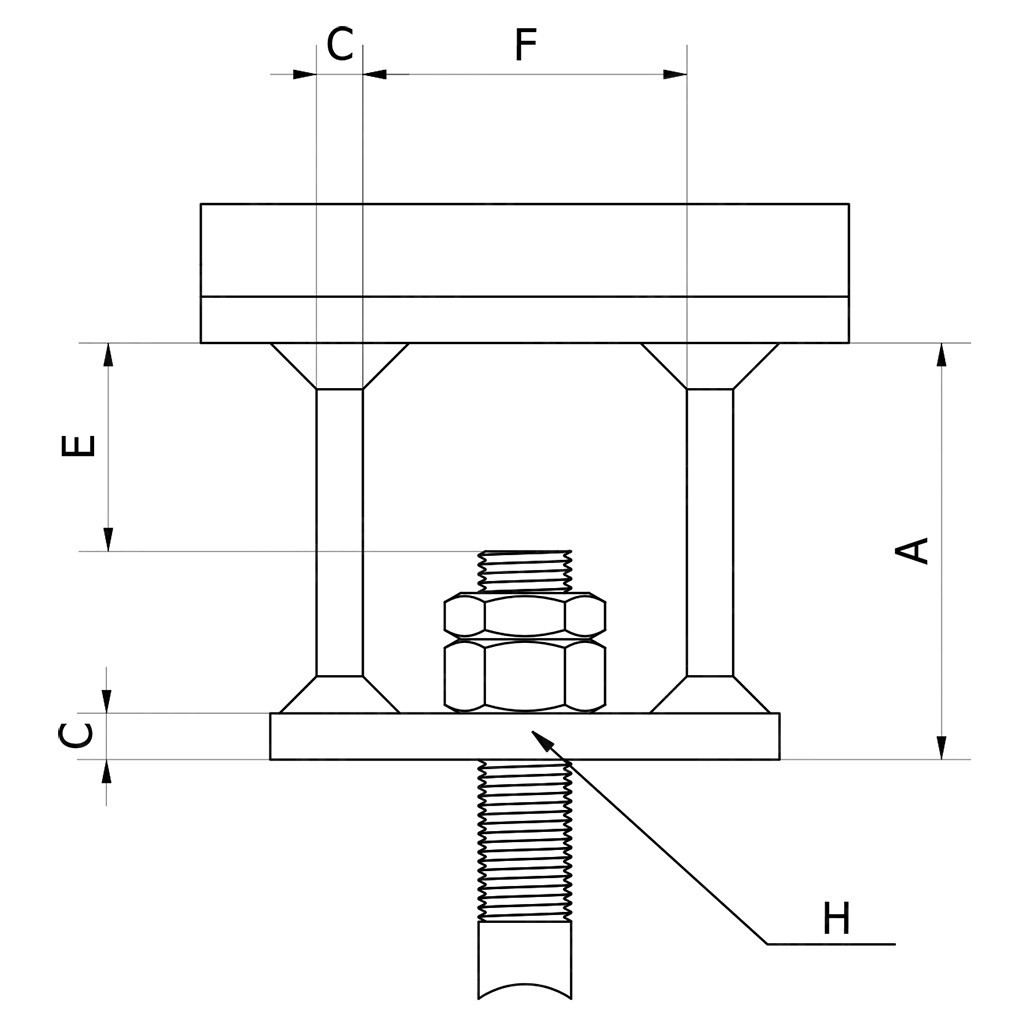

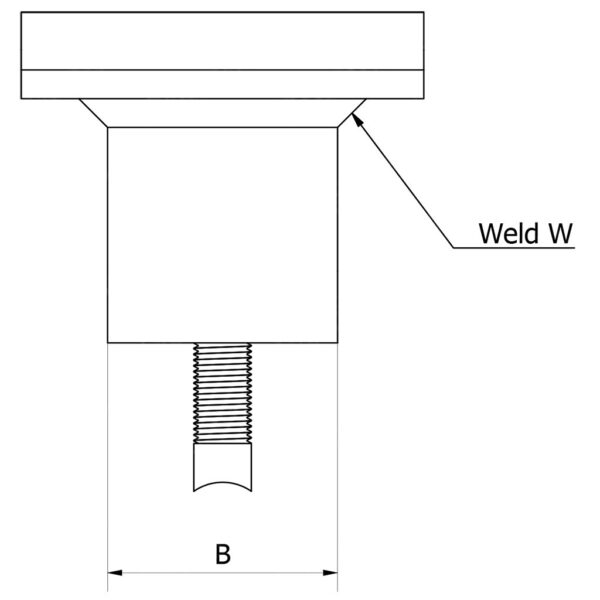

| Artikelnummer | A | B | C | D | E | F | H | W | Fy (kN) 80ºC | Gewicht (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 44.113.AST012.1 | 75 | 50 | 6 | M12 | 30 | 40 | 14 | 3 | 5,5 | 0,41 |
| 44.113.AST016.1 | 85 | 80 | 10 | M16 | 30 | 60 | 18 | 3 | 10,2 | 1,33 |
| 44.113.AST020.1 | 85 | 80 | 10 | M20 | 30 | 70 | 22 | 4 | 16,0 | 1,47 |
| 44.113.AST024.1 | 115 | 100 | 12 | M24 | 40 | 75 | 27 | 4 | 23,2 | 2,74 |
| 44.113.AST030.1 | 120 | 100 | 15 | M30 | 40 | 110 | 33 | 5 | 36,8 | 3,92 |
| 44.113.AST036.1 | 165 | 150 | 15 | M36 | 60 | 120 | 39 | 5 | 53,6 | 7,91 |
| 44.113.AST042.1 | 200 | 150 | 20 | M42 | 70 | 140 | 45 | 6 | 73,4 | 13,89 |
| 44.113.AST048.1 | 210 | 150 | 25 | M48 | 70 | 175 | 52 | 6 | 96,3 | 19,28 |
| 44.113.AST056.1 | 240 | 180 | 25 | M56 | 85 | 185 | 60 | 8 | 133,0 | 23,85 |
| 44.113.AST064.1 | 250 | 180 | 30 | M64 | 85 | 220 | 68 | 8 | 175,6 | 31,49 |
| 44.113.AST072.1 | 260 | 200 | 30 | M72 | 85 | 230 | 76 | 8 | 223,1 | 36,27 |
