Beschrijving

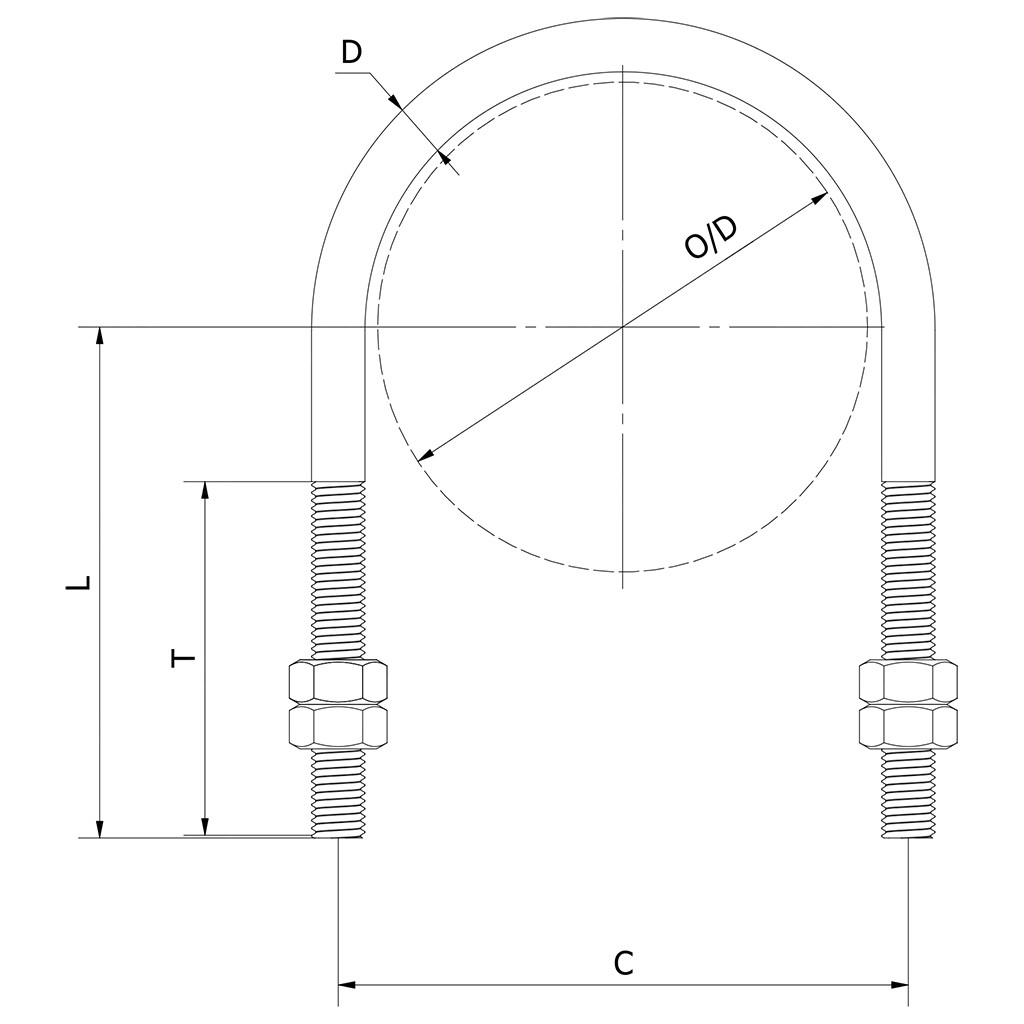

| Artikelnummer | O/D inch | O/D mm | C | D | L | T | Gewicht (kg) |
|---|---|---|---|---|---|---|---|
| 88.285.RIL022.6 | 1/2 | 21,3 | 30 | M6 | 65 | 60 | 0,05 |
| 88.285.RIL027.6 | 3/4 | 26,9 | 35 | M6 | 68 | 60 | 0,06 |
| 88.285.RIL034.6 | 1 | 33,7 | 42 | M6 | 70 | 65 | 0,06 |
| 88.285.RIL043.3 | 1 1/4 | 42,4 | 54 | M10 | 74 | 65 | 0,18 |
| 88.285.RIL049.3 | 1 1/2 | 48,3 | 62 | M10 | 78 | 65 | 0,18 |
| 88.285.RIL061.3 | 2 | 60,3 | 74 | M10 | 84 | 65 | 0,20 |
| 88.285.RIL077.3 | 2 1/2 | 76,1 | 90 | M12 | 92 | 80 | 0,41 |
| 88.285.RIL089.3 | 3 | 88,9 | 106 | M12 | 100 | 80 | 0,45 |
| 88.285.RIL115.3 | 4 | 114,3 | 128 | M12 | 114 | 80 | 0,52 |
| 88.285.RIL140.3 | 5 | 139,7 | 155 | M12 | 129 | 80 | 0,42 |
| 88.285.RIL169.3 | 6 | 168,3 | 189 | M16 | 154 | 100 | 1,08 |
| 88.285.RIL220.3 | 8 | 219,1 | 238 | M16 | 176 | 100 | 1,29 |
| 88.285.RIL273.3 | 10 | 273,0 | 296 | M20 | 213 | 110 | 2,18 |
| 88.285.RIL324.3 | 12 | 323,9 | 348 | M20 | 246 | 110 | 3,47 |
| 88.285.RIL356.3 | 14 | 355,6 | 380 | M20 | 260 | 110 | 3,72 |
| 88.285.RIL407.3 | 16 | 406,4 | 431 | M20 | 285 | 110 | 3,95 |
| 88.285.RIL458.3 | 18 | 457,2 | 484 | M24 | 320 | 120 | 6,13 |
| 88.285.RIL508.3 | 20 | 508,0 | 536 | M24 | 345 | 120 | 6,63 |
| 88.285.RIL610.3 | 24 | 609,6 | 638 | M24 | 400 | 120 | 7,76 |
